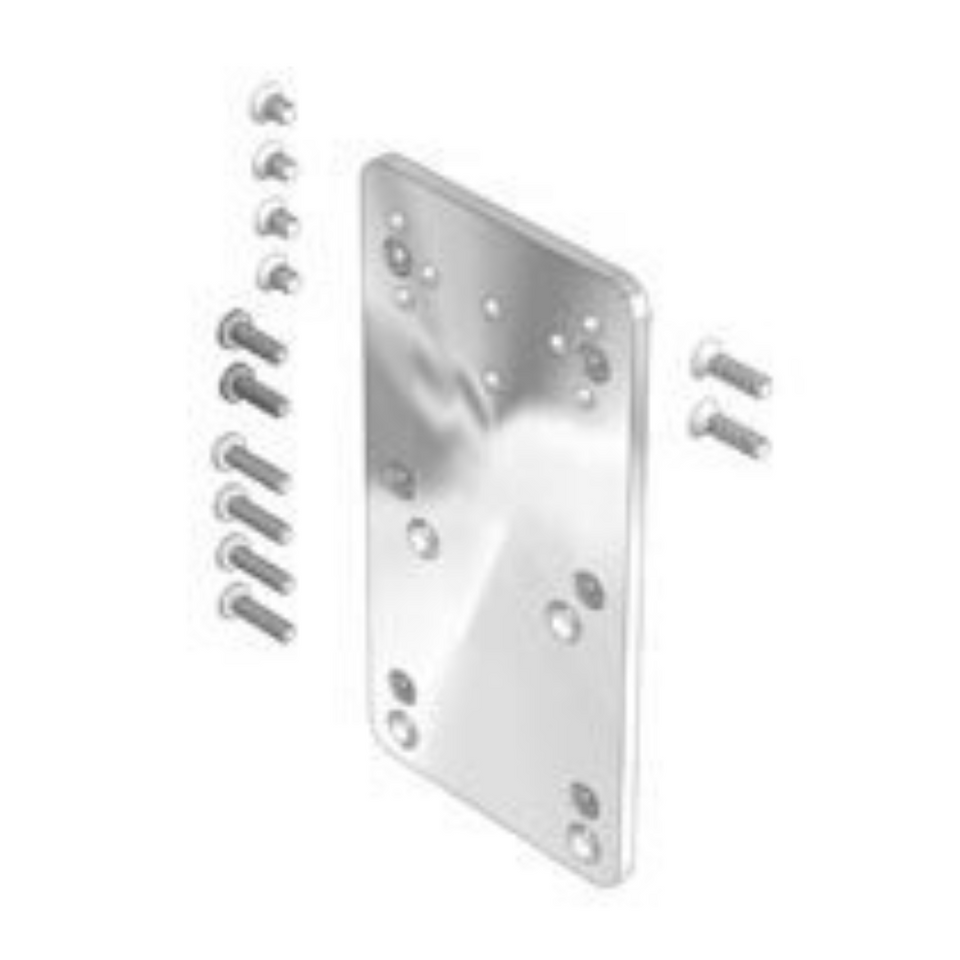

Dynavox Vmax, DV4, MT4 Augmentative Communications Device Plate

$45.00 USD

Introduction to Device Attachment To attach your device to the Mount'n Mover system, you will need to determine how your device can attach to the Quick Release Plate (QRP). Some devices attach directly to the QRP and others require an additional device specific attachment plate. Device Attachment Guide   Dynavox - Maestro This device attachment requires the use of the Dynavox Maestro Mounting Bracket,...

Introduction to Device Attachment

To attach your device to the Mount'n Mover system, you will need to determine how your device can attach to the Quick Release Plate (QRP).

Some devices attach directly to the QRP and others require an additional device specific attachment plate.

Device Attachment Guide



Dynavox - Maestro

This device attachment requires the use of the Dynavox Maestro Mounting Bracket, available from Dynavox or BlueSky Designs.
Please contact us if you want to get this thru BlueSky Designs

The back of your device should look like this:
Plate needed: Device Plate DV1 (DP-DV1)

DP-DV1 : Rev 7
My plate looks different!


Step 1: Place the shallow spacers


Place the shallow spacers over the top three threaded holes on the Maestro.
  • three 1/8" plastic spacers

Step 2: Attach the Maestro Mount Spacer


Attach the Maestro Mount Spacer over the plastic spacers placed in step 1, using the three screws provided.
  • three #8-32 x ½" flat head screws

Step 3: Attach the DP-DV1


Attach the DP-DV1 using:
  • two #8-32 x ½" pan head screws
Once all screws are threaded, tighten them down to torque.

Step 4: Attach the QRP


Attach the Quick Release Plate using the four shortest screws.
  • four #8-32 x ¼" flat head screws





Dynavox - V or M3

The back of your device should look like this:
Plate needed: Device Plate DV1 (DP-DV1)

DP-DV1 : Rev 7
My plate looks different!
Direct attachment to my QRP


Step 1: Attach the DP-DV1


Attach the DP-DV1 to the two threaded holes on the device using the two screws provided.
  • two #8-32 x ⅜" pan head screws

Step 2: Attach the QRP


Attach the Quick Release Plate using the four shorter screws.
  • four #8-32 x ¼" flat head screws





Dynavox - Vmax

The back of your device should look like this:
Plate needed: Device Plate DV1 (DP-DV1)

DP-DV1 : Rev 7
My plate looks different!


Step 1: Attach the DP-DV1


Attach the DP-DV1 to the two threaded holes on the device using the two screws provided.
  • two #8-32 x ⅜" pan head screws

Step 2: Attach the QRP


Attach the Quick Release Plate using the four shorter screws.
  • four #8-32 x ¼" flat head screws



Tango

Instructions Coming Soon

If this does not match your device, please let us know. We want to help.
